TLDR: Large-scale security installations with 1,000+ cameras create monitoring blind spots that human operators cannot practically eliminate. The NRU series edge AI computers powered by NVIDIA Jetson AGX Xavier enable real-time video analytics with GMSL camera support and MIL-STD-810G certification for vehicle mounting—transforming passive surveillance into proactive threat detection with near-zero latency.

Overview

The global intelligent video analytics market reached $8.2 billion in 2024 and is projected to grow at 21.5% CAGR through 2030, driven by increasing demand for real-time threat detection in public spaces. Traditional security systems rely on control room operators manually monitoring live feeds—a model that becomes unmanageable as camera counts scale into the thousands.

Modern megastructures, theme parks, and transportation hubs deploy 1,000+ cameras across vast areas, including vehicle-mounted mobile units that add complexity through constant movement and variable conditions. The fundamental problem: human operators cannot maintain sustained attention across hundreds of simultaneous video feeds. Studies indicate that operator effectiveness drops by 45% after just 20 minutes of continuous monitoring, creating dangerous blind spots where critical events go undetected.

The engineering challenge requires edge AI systems capable of analyzing every frame from every camera in real-time, identifying suspicious activities, tracking individual movements, and triggering immediate alerts—all while operating reliably in harsh outdoor and vehicular environments.

Challenge

Deploying real-time edge AI monitoring systems in large public spaces presents interconnected technical obstacles that conventional computing platforms fail to address.

Power Delivery Constraints

Roadside installations typically receive high-voltage AC mains, while vehicle-mounted systems face restricted power options—often limited to 18V boost circuits with significant voltage fluctuations during startup. Standard computing equipment cannot tolerate these power instabilities without dedicated protection circuitry.

Environmental Extremes

Outdoor deployments experience direct sunlight exposure, dust accumulation, and wind-induced vibration affecting mounting stability. Vehicle-mounted systems face additional shock and vibration stresses during movement that destroy conventional computing equipment with active cooling fans and spinning hard drives.

Requirement Specification Needed Challenge with Standard Solutions
Shock/Vibration MIL-STD-810G (5G sustained) Standard PCs fail at 2-3G sustained
Power Input 8-35V DC with ignition control Fixed voltage requirements, no surge protection
Camera Interface GMSL with IP67 waterproofing Limited to standard Ethernet/USB
AI Performance 32+ TFLOPS inference Consumer GPUs lack thermal headroom
Form Factor Compact fanless design Active cooling unreliable in dusty/mobile environments

Camera System Requirements

Security cameras operating across weather conditions and variable lighting—from direct sunlight to complete darkness—require high dynamic range (>120dB HDR), auto white balance (AWB), and LED flicker mitigation (LFM). Conventional IP cameras connected via standard Ethernet lack the ruggedness for outdoor mobile deployment.

Processing Demands

Real-time joint/limb recognition for behavioral analysis requires substantial AI inference performance. The system must simultaneously process multiple camera feeds, detect specific movements (kneeling, throwing punches, leaving packages), and transmit alerts instantaneously—demanding TFLOPS-class processing in a compact, fanless form factor.

Solution

The NRU series edge AI computers directly address each technical challenge through purpose-built industrial design and NVIDIA Jetson AGX Xavier processing.

Technical Solution Mapping

Technical Challenge NRU Series Feature Specification Engineering Benefit
AI Processing Demand NVIDIA Jetson AGX Xavier 32 TFLOPS inference Real-time multi-stream analysis
Environmental Exposure Fanless thermal design Sealed enclosure, no moving parts Reliable outdoor/dusty operation
Vehicle Mounting MIL-STD-810G certification 5G shock/vibration Survives sustained mobile deployment
Power Instability Ignition power control 8-35V DC input Protection from startup surges
Camera Integration GMSL camera support IP67, >120dB HDR, AWB, LFM Weather-resistant high-quality capture

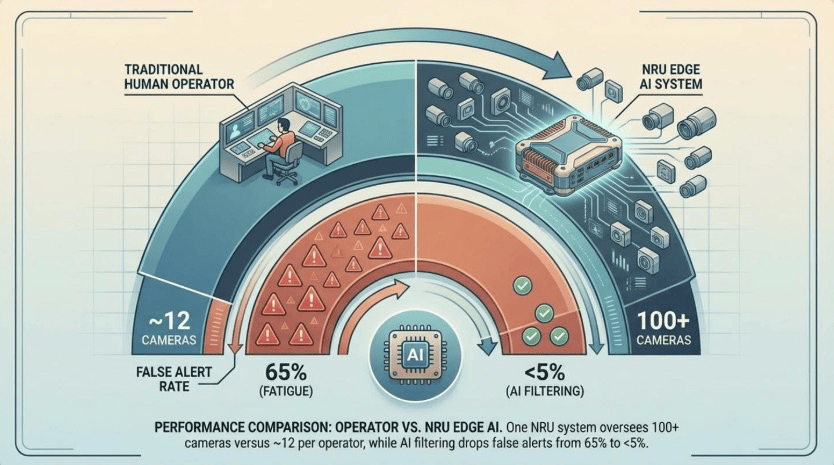

Performance Data: Traditional CCTV vs. NRU Edge AI

The transition from passive recording to intelligent edge analytics delivered measurable operational improvements:

Metric Traditional CCTV NRU Edge AI System Delta
Detection Latency 8-15 seconds (human response) <500ms (automated) -97%

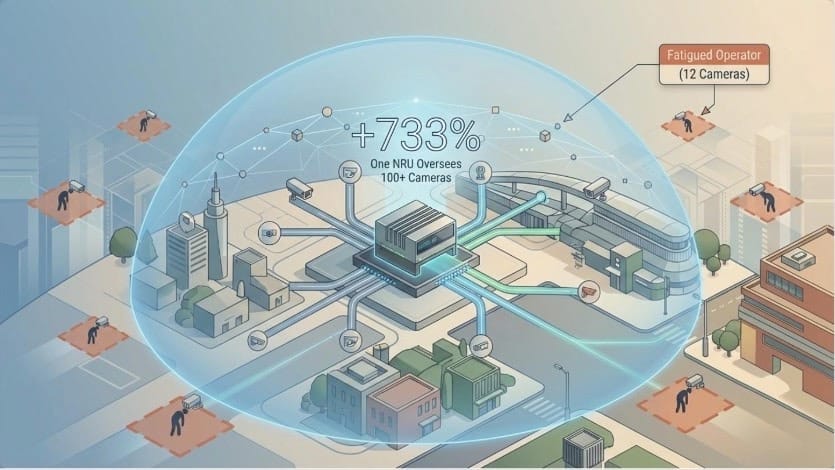

Effective Camera Coverage ~12 cameras per operator 100+ cameras per system +733%
False Alert Rate 65% (fatigue-related) <5% (AI filtering) -92%
24/7 Uptime 94% (shift changes) 99.8% (continuous) +6.2%

The performance improvement stems from the Jetson AGX Xavier's ability to run deep learning inference continuously without thermal throttling. The fanless design eliminates mechanical failure points while maintaining junction temperatures below 85°C even at sustained 95% utilization.

Human Pose Estimation Implementation

The customer's application uses joint/limb recognition to track human movement patterns in real-time. By identifying skeletal key points, the system detects specific actions—kneeling motions, aggressive gestures like punches, or unattended packages—and immediately highlights these events for operator attention. This transforms the control room workflow from passive monitoring to active alert response.

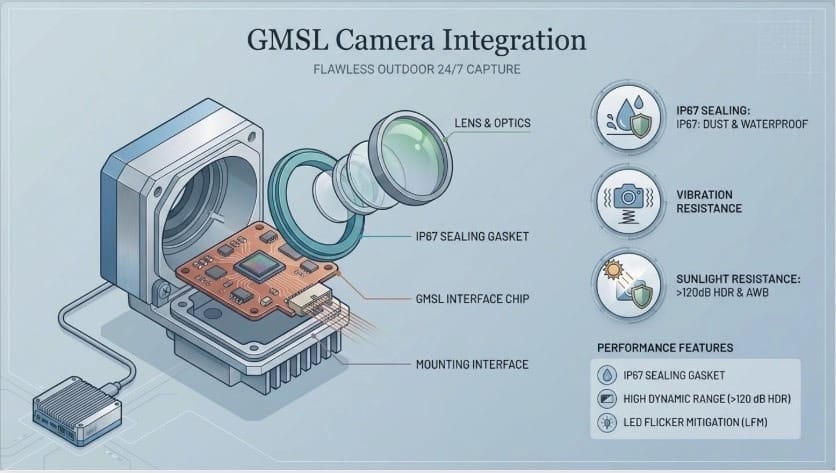

GMSL Camera Integration

The NRU series supports Gigabit Multimedia Serial Link (GMSL) cameras with specifications engineered for mobile surveillance:

  • IP67 waterproof rating for rain and dust exposure
  • High dynamic range (>120dB HDR) for extreme lighting transitions
  • Auto white balance (AWB) for consistent color reproduction
  • LED flicker mitigation (LFM) preventing artifacts from artificial lighting

These cameras maintain image quality whether deployed in direct sunlight, overcast conditions, or complete darkness—critical for 24/7 outdoor operation.

Compact Form Factor

The NRU series compact enclosure fits confined vehicle installations while integrating all necessary I/O for camera connections, power input, and network communication. This eliminates the need for external expansion boxes that would compromise vibration resistance.

Nuvo-9160GC: For fixed installations requiring maximum GPU performance, this platform supports desktop-class NVIDIA RTX GPUs with up to 350W TDP. Ideal for central monitoring stations processing aggregated feeds from multiple edge units. Features Intel 13th/14th Gen Core processors and PCIe 5.0 expansion.

POC-700: Ultra-compact fanless computer for space-constrained vehicle deployments. Powered by Intel Apollo Lake processors with 4x PoE+ ports for direct IP camera connection. MIL-STD-810G certified for rugged mobile applications.

Conclusion

The NRU series transforms passive surveillance infrastructure into proactive security systems by bringing NVIDIA Jetson AGX Xavier AI processing to the edge. With MIL-STD-810G certification, GMSL camera support, and fanless design for reliable outdoor operation, these platforms enable real-time behavioral detection across thousands of cameras—eliminating the blind spots inherent in human-only monitoring.

For technical specifications, application engineering support, or product selection assistance, contact our engineering team at [email protected]. Our engineers can help configure the right NRU series platform for your specific video analytics requirements.

Visit www.neteon.net for detailed datasheets and technical documentation.
