TLDR
Precision agriculture demands real-time crop health analysis across thousands of hectares, but field conditions — dust, heat, vibration, and unreliable connectivity — destroy conventional computing hardware within a single growing season. The Nuvo-11000 Series delivers Intel Core Ultra 200 processing with integrated NPU acceleration in a fanless, wide-temperature chassis, enabling on-site AI inference for multispectral crop analytics without cloud dependency.
Overview
Modern agriculture is undergoing a data-driven transformation. Farms deploying precision agriculture technologies use multispectral cameras, LiDAR sensors, soil moisture probes, and weather stations to generate terabytes of field data per season. Similar challenges arise in broccoli harvesting automation and solar farm vegetation management. Turning raw data into actionable decisions — variable-rate fertilizer maps, irrigation schedules, early pest detection alerts — requires real-time AI inference at the field edge, not hours-delayed cloud processing.
The computing infrastructure supporting these systems operates in environments hostile to electronics: open-air equipment enclosures reaching 55°C in summer sun, constant vibration from tractor-mounted platforms, pervasive dust from tilling operations, and intermittent cellular connectivity across rural landscapes.

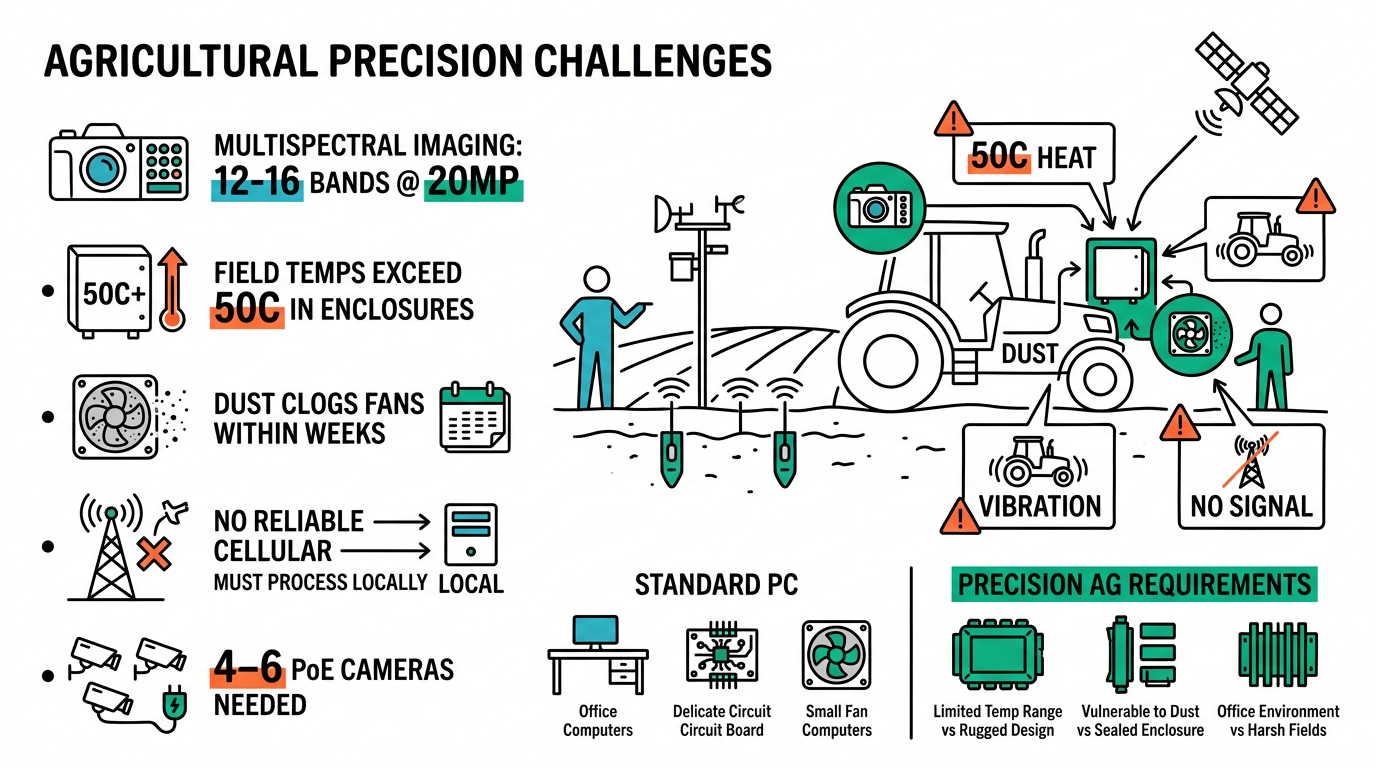

Challenge
Deploying AI-powered crop analytics at the agricultural edge presents a unique combination of computational, environmental, and connectivity constraints.
Processing throughput is the primary bottleneck. Multispectral imaging systems generate 12–16 band image stacks at resolutions exceeding 20 megapixels per capture. Running convolutional neural networks for crop health classification, weed detection, and yield prediction on these datasets requires sustained CPU and AI accelerator performance that low-power embedded boards cannot deliver.

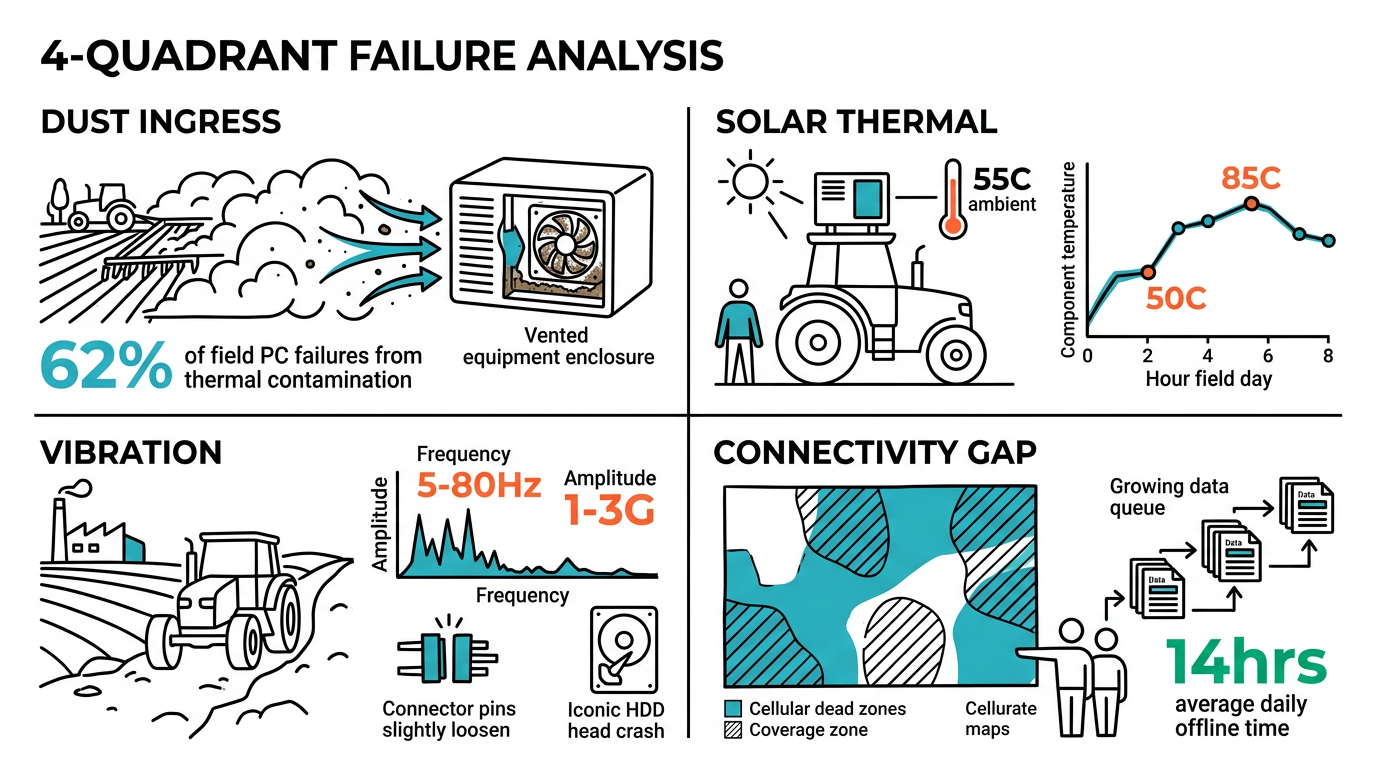

Environmental exposure compounds the problem. Field-deployed systems face direct solar radiation, ambient temperatures routinely exceeding 50°C inside equipment enclosures, and fine particulate dust that clogs fan-based cooling within weeks. Tractor-mounted installations add continuous mechanical vibration across unpaved terrain.
Connectivity gaps are the final constraint. Many agricultural operations span areas with limited or no cellular coverage. Systems must process data locally and store results for batch synchronization when connectivity returns.
| Parameter | Standard Industrial PC | Precision Ag Requirement |
|---|---|---|
| AI Inference (INT8) | No dedicated accelerator | >10 TOPS NPU required |
| Operating Temperature | 0°C to 45°C | -25°C to 60°C |
| Dust/Particle Ingress | Vented chassis | Sealed, fanless IP-rated |
| Multi-Camera Input | 1–2 USB cameras | 4–6 PoE cameras simultaneous |
| Onboard Storage | Single SATA SSD | Dual NVMe for redundancy |
| Offline Operation | Cloud-dependent | Full local inference + storage |
Solution
The Nuvo-11000 Series addresses every constraint with Intel's latest Core Ultra 200 platform in a ruggedized, fanless form factor. The integrated Intel AI Boost NPU delivers up to 11 TOPS of dedicated AI inference alongside the CPU and GPU, enabling real-time multispectral image classification without external accelerator cards.
The sealed aluminum chassis operates from -25°C to 60°C with no moving parts, eliminating dust ingress and fan failure — the two leading causes of field computing downtime. MIL-STD-810H vibration ratings ensure reliable operation on tractor-mounted platforms traversing uneven terrain.
The Nuvo-11006E variant provides 6 GbE ports with PoE capability, powering and connecting up to 6 multispectral cameras directly without external switches or injectors. Optional 10GbE variants handle high-bandwidth LiDAR point cloud data alongside camera feeds.
Dual M.2 NVMe slots provide high-speed redundant local storage for days of continuous field data capture, with automatic synchronization to farm management servers when connectivity is available. The 35W TDP keeps power consumption within the budget of solar/battery-powered field installations.

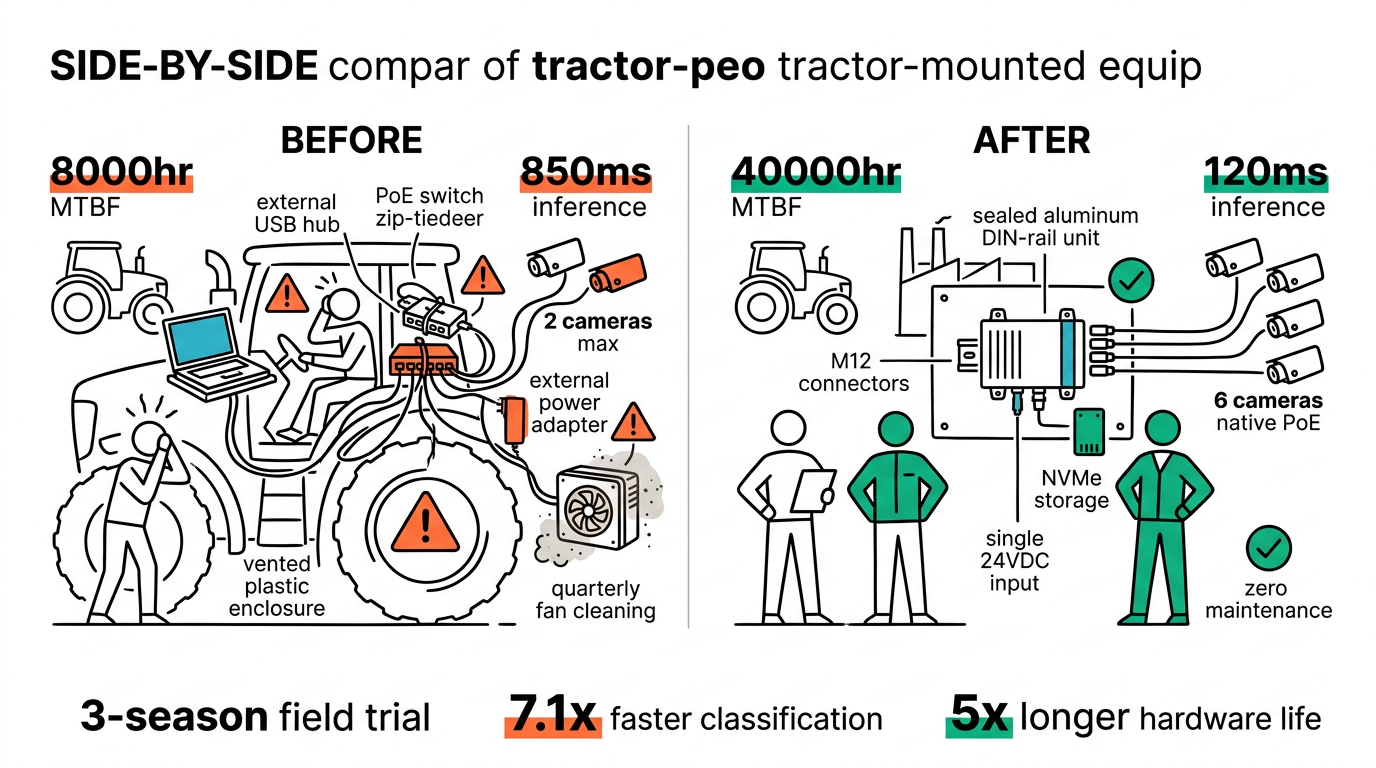

| Metric | Legacy Embedded PC | Nuvo-11000 Series | Improvement |
|---|---|---|---|
| AI Inference (INT8) | 0 TOPS (CPU only) | 11 TOPS (NPU) | Dedicated AI engine |
| Image Classification Latency | 850ms per frame | 120ms per frame | 7.1x faster |
| Camera Channels (PoE) | 2 (external switch) | 6 (native PoE) | 3x more, no switch |
| Field MTBF | 8,000 hrs | 40,000+ hrs | 5x longer |
| Operating Temp Range | 0–45°C | -25–60°C | 85°C wider span |
Related Products
NRU-220S: For drone-based crop scouting requiring GPU-accelerated inference on captured aerial imagery. Pairs NVIDIA Jetson Orin with a compact fanless enclosure, delivering up to 275 TOPS for real-time object detection during autonomous flight operations.
Nuvo-11531: For greenhouse and controlled-environment agriculture where space is severely limited. Same Intel Core Ultra 200 platform in a compact chassis with PoE and ignition power management for mobile grow operations.
Conclusion
The Nuvo-11000 Series enables precision agriculture operations to deploy AI-powered crop analytics directly at the field edge, eliminating cloud dependency while delivering 7.1x faster image classification and 5x longer hardware lifespan than legacy embedded systems. Sealed fanless construction and wide-temperature operation ensure reliability across growing seasons in the harshest outdoor conditions.
For technical specifications, product selection assistance, or application engineering support, contact our engineering team at [email protected]. Visit www.neteon.net for detailed datasheets and technical documentation.
FAQs
What makes the Nuvo-11000 suitable for precision agriculture?
The Nuvo-11000 features Intel Core Ultra 200 processors with integrated NPU for AI inference at the edge, enabling real-time crop analytics without cloud dependency. Its -25°C to 60°C operating range handles field conditions.
How does edge AI improve crop yield compared to traditional monitoring?
Edge AI processing with platforms like the Nuvo-11000 enables sub-second decision-making for irrigation and pest control, reducing crop loss by up to 30% compared to scheduled monitoring approaches.
Can the Nuvo-11000 process multi-spectral camera data in real time?
Yes, the Nuvo-11000 Series supports multiple high-resolution camera inputs and processes NDVI and multi-spectral data locally using its integrated GPU and NPU acceleration.
What connectivity options does the Nuvo-11000 offer for agricultural networks?
The Nuvo-11000 provides multiple GbE ports, USB 3.2, and optional wireless modules for connecting to field sensor networks, MQTT brokers, and farm management systems.
Does Neousys offer NVIDIA Jetson alternatives for smaller agricultural robots?
Yes, the NRU-220 Series provides NVIDIA Jetson Orin-based edge AI in a compact form factor ideal for autonomous weeding robots, drone-mounted crop inspection, and smaller agricultural platforms.
