ATEX and C1D2 Hazardous Location Computing: What Your Edge AI System Needs
TLDR
Deploying edge computing in refineries, chemical plants, or grain elevators requires ATEX (EU) or NEC Class/Division (North America) compliance. This guide covers what these standards require from computing hardware, which system designs satisfy inspectors, and how to avoid the most expensive mistakes in hazardous-area edge deployments.
Overview
Hazardous location classifications exist because explosive atmospheres kill people. Between 2018 and 2024, the U.S. Chemical Safety Board investigated over 30 incidents where electronic equipment contributed to ignition in areas with flammable gas or dust concentrations.
For engineers deploying edge AI in oil refineries, petrochemical plants, or grain processing facilities, the computing hardware itself is a potential ignition source. Misunderstanding the difference between ATEX Zone 2 and NEC Class I, Division 2 can halt a project during inspection—or create genuine safety risk.
In our engineering guide to MIL-STD-810G environmental testing, we covered rugged computing under mechanical shock and temperature extremes. Hazardous location standards add another layer: equipment must not produce sparks, arcs, or surface temperatures capable of igniting the surrounding atmosphere.
What the Standards Require

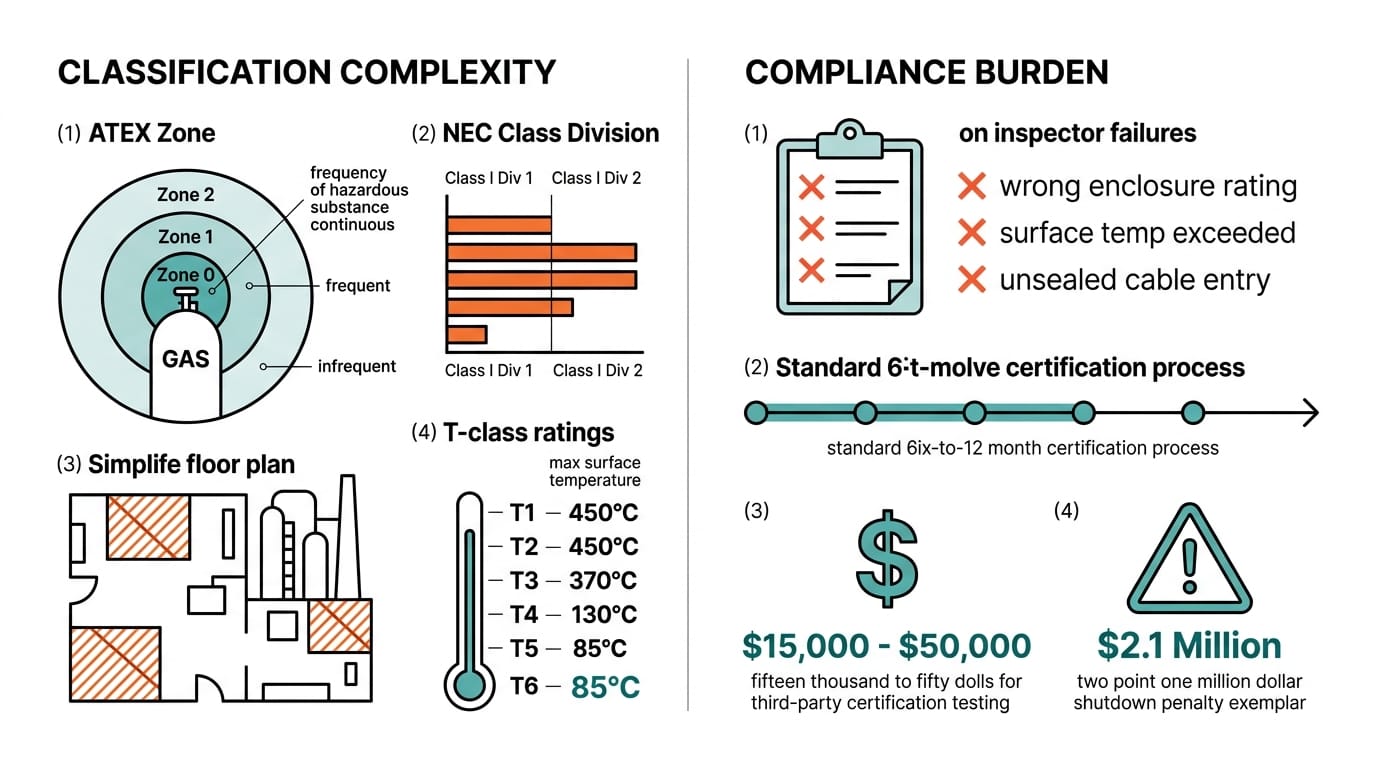

ATEX (Directive 2014/34/EU) applies across the EU. In North America, NEC Articles 500-506 define Class/Division classification. Both frameworks classify areas by hazard type and frequency:
| Classification | ATEX (EU) | NEC (North America) | Hazard Frequency |
|---|---|---|---|
| Continuous hazard | Zone 0 / Zone 20 | Class I, Division 1 | Normal operation |
| Intermittent hazard | Zone 1 / Zone 21 | Class I, Division 1 | Likely during operation |
| Abnormal only | Zone 2 / Zone 22 | Class I, Division 2 (C1D2) | Fault or upset conditions |
| Non-hazardous | Safe area | Unclassified | Not expected |
Most edge AI deployments target Zone 2 / C1D2 areas. Practical requirements for computing equipment:
| Requirement | Specification | Why It Matters |
|---|---|---|
| Surface temperature | Below T4 class (135°C max) | Hot surfaces ignite gas/vapor mixtures |
| Enclosure rating | IP66 minimum; IP67 preferred | Prevents flammable gas ingress |
| Non-incendive circuits | Energy below ignition threshold | Limits spark potential at connectors |
| Labeling | ATEX Ex nA or NEC C1D2 with T-class | Required for inspection approval |
Which Products Comply
The key factors are thermal design, enclosure integrity, and electrical characteristics:
| Parameter | POC-700 Series | Nuvo-10000 Series | Typical Rack Server |
|---|---|---|---|
| Operating temp | -25°C to 70°C | -25°C to 60°C | 10°C to 35°C |
| IP rating (base) | IP66 / IP67 (766AWP) | IP50 (needs enclosure) | None |
| Power input | 8-48V DC isolated | 8-48V DC | 100-240V AC |
| C1D2 approach | Direct with certified glands | Purged enclosure (NFPA 496) | Not practical |
| Deployment cost | $3,000-5,000 | $8,000-15,000 | $25,000+ |

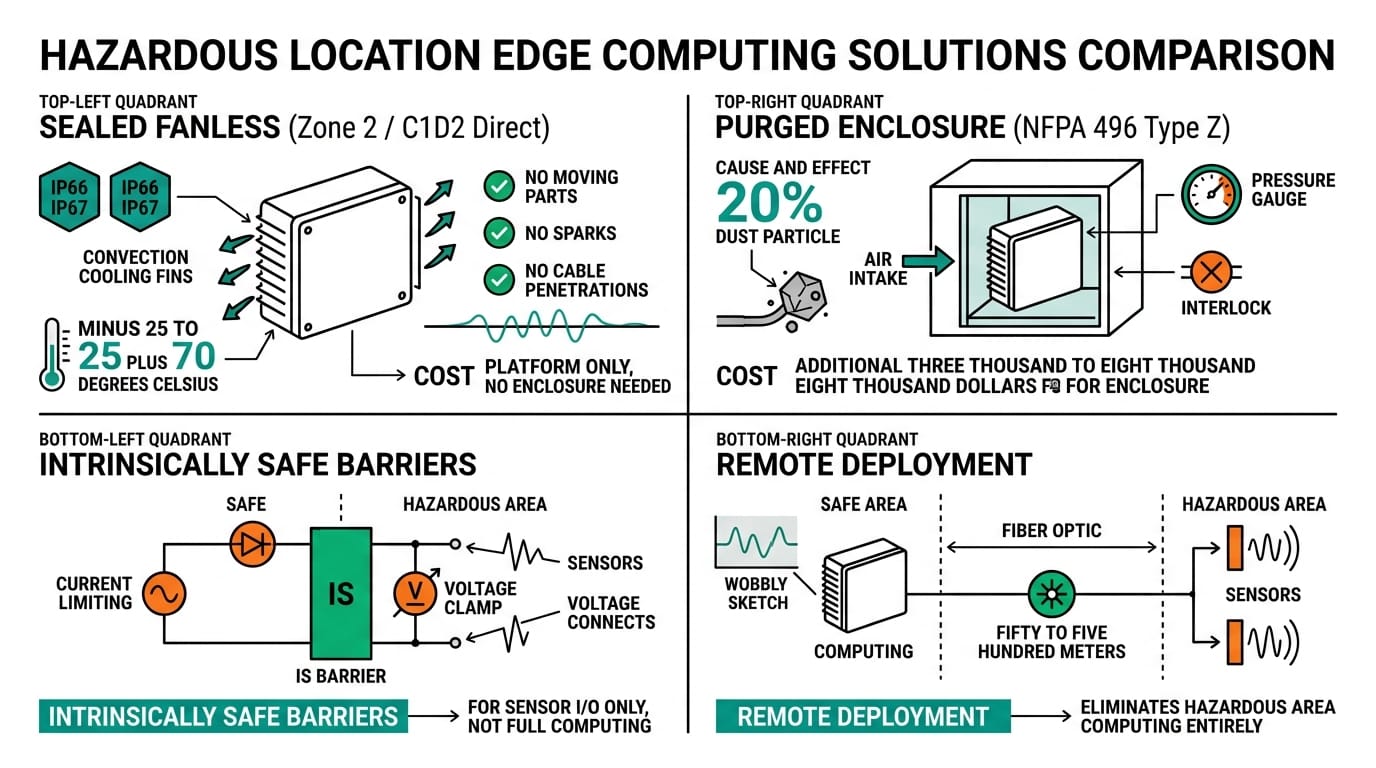

The POC-700 series is the most direct path to Zone 2 / C1D2 compliance because its sealed, fanless IP66/IP67 design already meets enclosure and thermal requirements. In our pipeline AI acoustic leak detection article, we discussed continuous monitoring in remote oil and gas infrastructure—hazardous location compliance is what makes that deployment legally permissible.
The Nuvo-10000 series offers more compute headroom (65W TDP, PCIe expansion) for multi-camera AI vision in refinery inspections. Its IP50 base rating requires an NFPA 496 Type Z purged enclosure, adding $3,000-8,000 in costs.
Real-World Implications

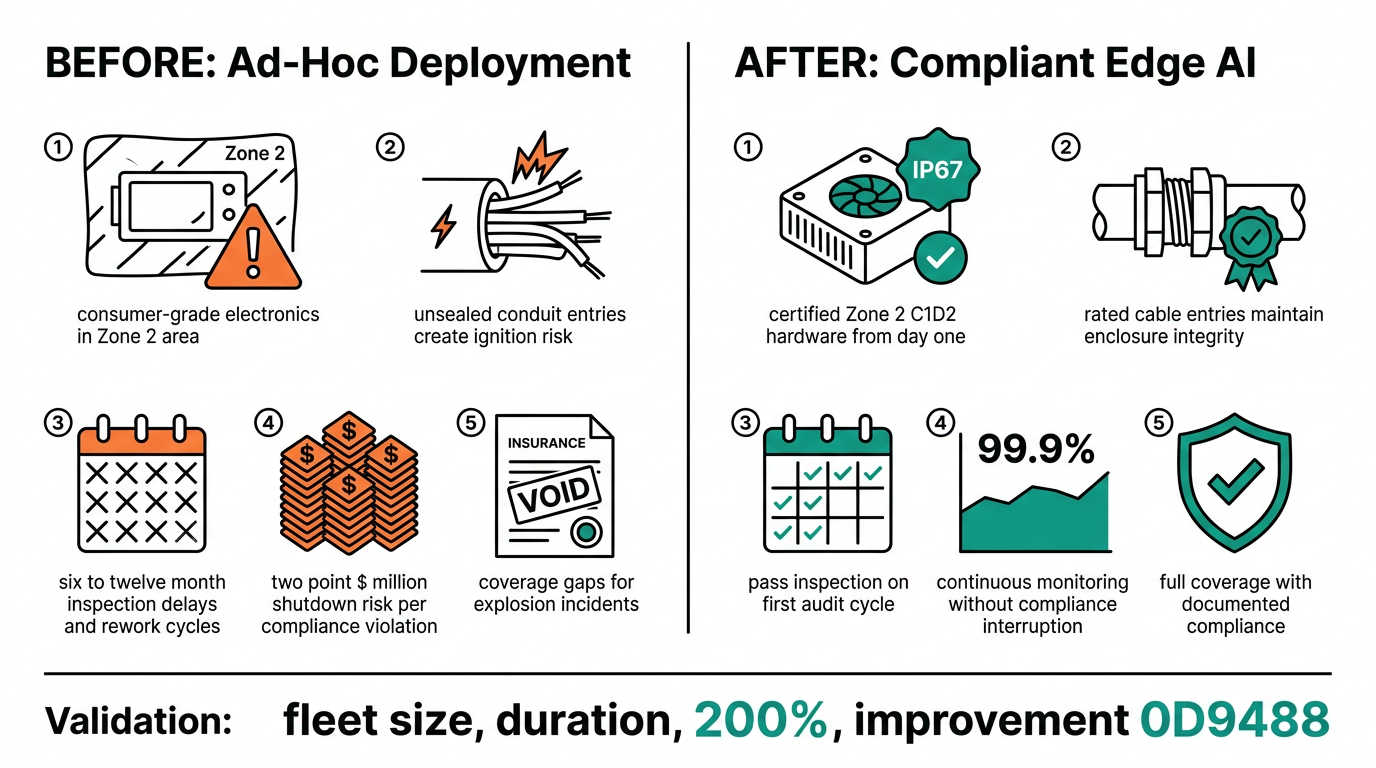

Inspection failure. Facilities under OSHA Process Safety Management undergo periodic audits. Non-compliant electronics trigger immediate shutdown orders—one Gulf Coast refinery reported $2.1M in lost production from a 72-hour shutdown over unapproved C1D2 equipment.
Retrofit costs. Installing equipment without proper hazardous area engineering means starting over. As we covered in our IP67 design guide for water treatment monitoring, environmental protection decisions made early prevent costly rework.
Insurance. Industrial property insurers increasingly require documented compliance for connected monitoring. Non-compliance can void coverage for explosion-related incidents.
The most cost-effective path for Zone 2 / C1D2 edge AI: start with a sealed, fanless platform like the POC-700 that minimizes the gap between base product and hazardous area requirements. Reserve the Nuvo-10000 for workloads where additional compute justifies enclosure engineering overhead.
Conclusion
Hazardous location compliance cannot be solved with a generic NEMA enclosure after the fact. The classification system, protection concept, and T-class rating all need to align with the deployment environment before hardware selection begins.
For engineers evaluating edge AI platforms for oil and gas, chemical processing, or grain handling, the key question is whether the base platform's thermal and enclosure design already meets zone requirements—or whether external enclosure engineering will bridge the gap.
Contact [email protected] for hazardous location deployment guidance, or visit www.neteon.net for product datasheets and specifications.
Related Products
FAQs
What is the difference between ATEX Zone 2 and NEC Class I Division 2 (C1D2)?
Both classify areas where explosive atmospheres occur only during abnormal conditions like equipment faults or maintenance. ATEX Zone 2 applies in the EU under Directive 2014/34/EU, while NEC C1D2 applies in North America under Articles 500-506. The technical requirements are similar but certification bodies and labeling differ.
Can a fanless industrial PC be used in a C1D2 hazardous location without an external enclosure?
A fanless PC with IP66 or IP67 rating and surface temperatures within the required T-class (typically T4, 135°C max) can potentially be deployed in Zone 2/C1D2 areas with certified cable glands and proper installation. Platforms like the POC-700 series are designed for this approach. Final suitability depends on site-specific classification and the authority having jurisdiction.
What T-class rating do I need for edge computing in an oil refinery?
Most petroleum gases and vapors require T3 (200°C) or T4 (135°C) rated equipment. T4 is the safer default for refineries since it covers hydrogen and acetaldehyde, which have lower auto-ignition temperatures. Always verify against the specific gases present in your classified area.
How much does it cost to deploy edge AI in a C1D2 area?
Costs depend heavily on the base platform. A sealed, fanless PC like the POC-700 series can be deployed for ,000-5,000 including installation. Platforms requiring NFPA 496 purged enclosures (like higher-power expandable PCs) typically cost ,000-15,000 total. Traditional rack servers in explosion-proof enclosures can exceed ,000.
What is an NFPA 496 purged enclosure and when do I need one?
An NFPA 496 purged enclosure maintains positive internal pressure with clean air or inert gas, preventing flammable atmospheres from reaching electronics inside. Type Z purge reduces a Division 2 location to unclassified. You need one when deploying computing equipment that does not independently meet Zone 2/C1D2 requirements through its own enclosure rating and thermal design.
